1. Gas-fired burner.
2.Single stage operation(on/off).
3.Air-gas mixing at blast-pipe.
4.Ability to obtain optimal combustion values by regulating combustion air and blast-pipe.
5.Do not need to remove the installation of flange and combustion cylinder,it can be directly removed burner
6.Manual flow adjustment.
7.Using a flange and high temperature resistant heat insulation pads connected to the boiler.
8.Combustion air intake with air flow adjustment device.
9.Momophase electric motor to run fan.
10.Flame presence check by ionisation electrode
11.Electrical plant protection rating Ip40
12.Plastic protection cover.
13.Air inlet with quieter
Products

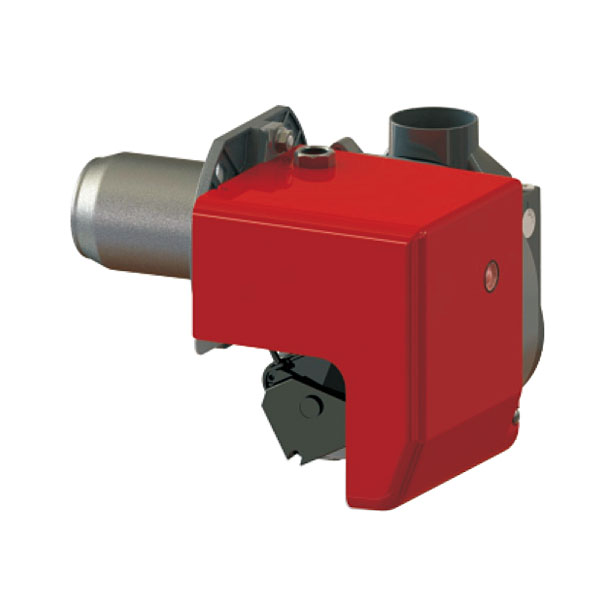

BTN3G/GWOne-stage Gas Burner
PDF viewProduct Model
BTN3G
| power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 17～48 | BTN3G | 202 22 010 | 230V 50Hz | 0.075 | 380x310x285 | 9 |

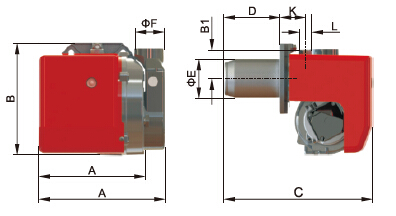

| Model | A | B | C | D | E | F | G | H | J | B1 | K | L | O | N | M |
| mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | mm | mm | mm | mm | Φmm | Φmm | M | |
| BTN3G | 219 | 227.5 | 304 | 114 | 80 | - | 90 | 176 | 200～245 | 59.5 | 64.5 | G1/2" | 130 | 150 | 4-M8 |
BTN3GW
| power | Model | Art No. | Power supply |
Motor power
kW |
packing Size
L x P x H mm |
Net weight
kg |
| 17～48 | BTN3GW | 202 22 210 | 230V 50Hz | 0.075 | 380x310x285 | 9 |
| Model | A | B | C | D | E | F | G | H | J | B1 | K | L | O | N | M |
| mm | mm | mm | mm | Φmm | Φmm | Φmm | Φmm | mm | mm | mm | mm | Φmm | Φmm | M | |
| BTN3GW | 258 | 227.5 | 304 | 114 | 80 | 60 | 90 | 176 | 200～245 | 59.5 | 64.5 | G1/2" | 130 | 150 | 4-M8 |
